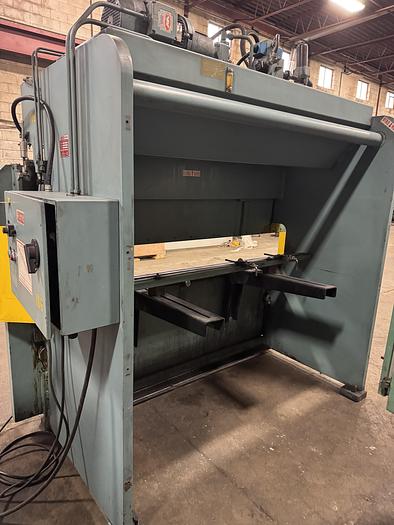

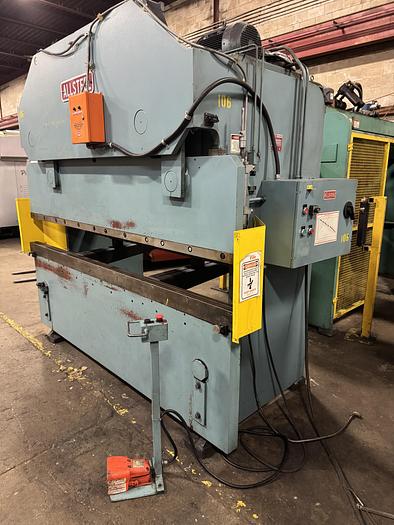

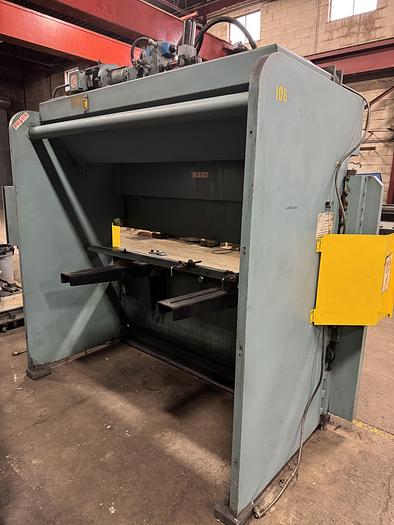

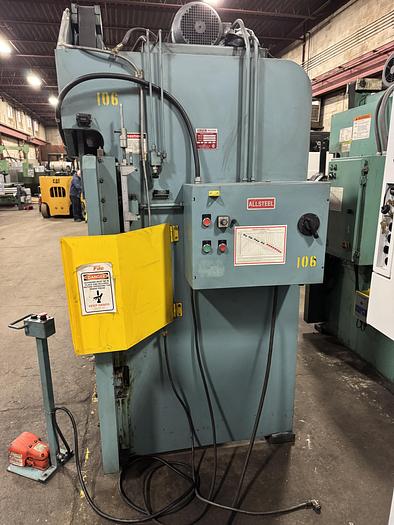

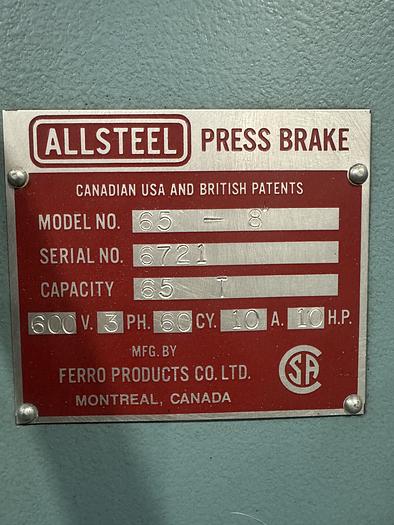

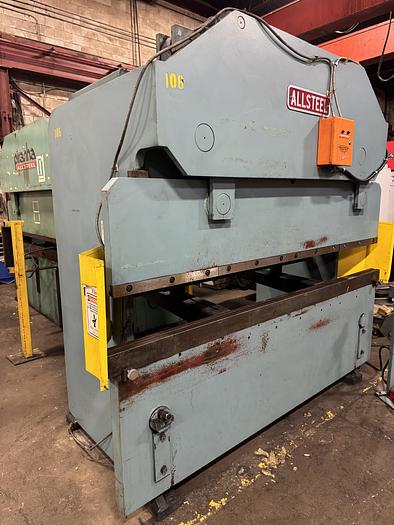

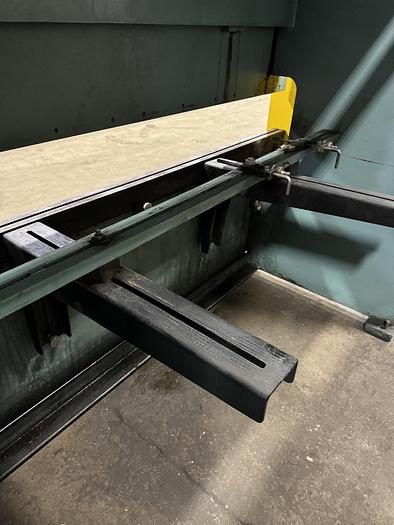

65 TON X 8', ALLSTEEL, HYDRAULIC PRESS BRAKE 65-8
No longer available
Specifications
| Manufacturer | 65 TON X 8', ALLSTEEL, HYDRAULIC PRESS BRAKE |
| Model | 65-8 |
| Stock Number | 4701 |
| CAPACITY | 65 TONS |
| OVERALL BED LENGTH | 8' |
| DISTANCE BETWEEN UPRIGHTS | 78" |
| THROAT DEPTH | 8" |
| VARIABLE STROKE | 0 - 6" |
| OPEN HEIGHT | 15" |
| APPROACH SPEED | 2.6" / SEC. |
| RETURN SPEED | 190 IPM |
| VARIABLE PRESSING SPEED | .28 - .6" / SEC. |
| APP. OIL CAP. | 65 US GAL. |
| MAIN MOTOR | 10 HP |
| ELECTRICS | 600V/3/60 |
| APPROX. WEIGHT | 10,000 LBS. |
Equipped With
FOOT PEDAL CONTROL
OFF/SET/JOG/RUN/SINGLE MODE SELECTOR SWITCH
PUSH BUTTON RAM RETURN
