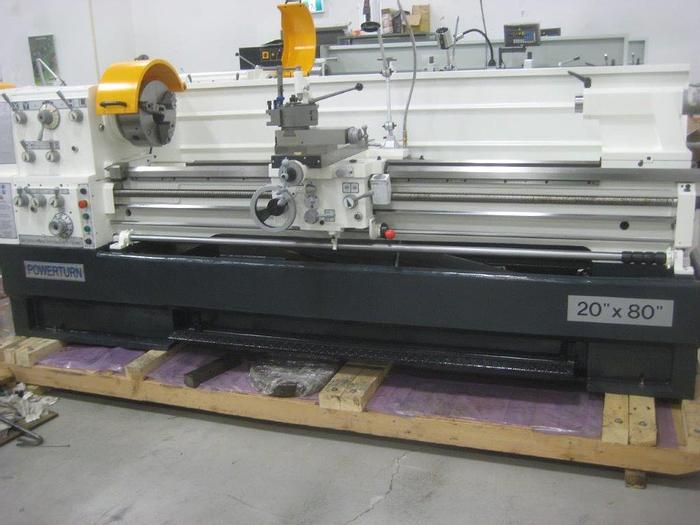

20" X 80" , "NEW" POWERTURN PRECISION LATHE
orCall (905) 669-7507
Specifications
| Manufacturer | POWERTURN |
| Stock Number | 4127 |
| SWING OVER BEDWAYS | 20" |
| SWING OVER CROSS SLIDE | 12" |
| SWING IN GAP | 28-1/2" |
| CENTER DISTANCE | 80" |
| SPINDLE BORE | 3-1/8" |
| SPINDLE SPEEDS (12) | 25 - 1600 RPM |
| SPINDLE TRAVEL OF TAILSTOCK | 6-1/4" |
| TAILSTOCK TAPER | 5 MT |
| SPINDLE MOTOR | 10 HP |
| APPROX. WEIGHT | 5,700 LBS. |
Equipped With
One Piece Cast Base
Hardened & Ground Bedways
Foot Pedal Brake
Coolant System
Splash Guard
Threading Cutting Dial
Quick Change Tool-post 40 pos. c/w 4 Holders
3 – Jaw Chuck 12” Dia.
4 – Jaw Chuck
Steady Rest
Follow Rest
Instruction Manual & Tools
Electrics 575/3/60 CSA
EXTRA FOR:
Faceplate 16” Diameter $ 445.00
Large Steady Rest (300 mm) Roller Type $ 1,675.00
Taper Turning Attachment $ 1,730.00
Chuck guard $ 520.00
Fagor Digital Readout System ------ (80” Centres) $ 4,990.00
Live Centre #5MT $ 325.00
