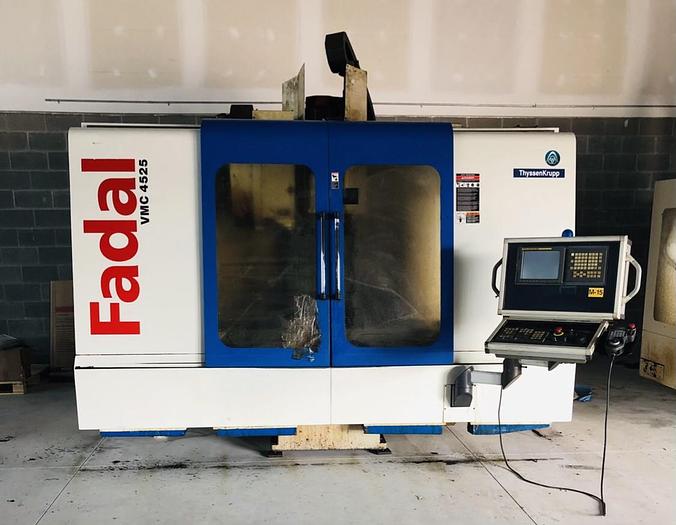

45"X, 25"Y, 24"Z, FADAL, 2005, VMC 4525, CNC VERTICAL MACHINING CENTER

orCall (905) 669-7507

Specifications

ManufacturerFADAL
ModelVMC4525
Year2005
Serial Number3P21053D1
Stock Number4008
MACHINE INSTALLED2017
TABLE AREA39" X 20"
X-AXIS TRAVEL33"
Y-AXIS TRAVEL22"
Z-AXIS TRAVEL22"
MAX. TABLE LOAD1,322 LBS.
SPINDLE NOSE TO TABLE SURFACE3.9" TO 25.9"
NO. OF STATIONS ON ATC20
SPINDLE TAPERISO 40
MAX. SPINDLE SPEED8,000 RPM
RAPID FEED RATE - X /Y /Z1,417"/MIN. X/Y - 944"/MIN. Z
FEED RATE393"/MIN.
VOLTAGE600V/3/60
MAIN MOTOR21 HP
