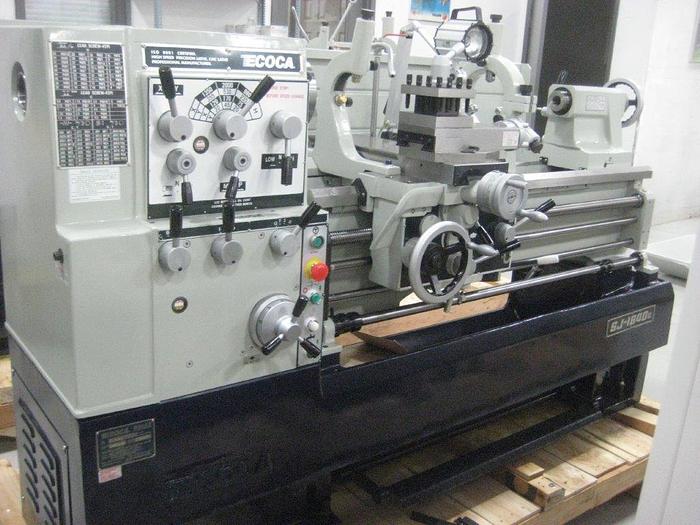

ECOCA, SJ460, 18" X 40", " NEW " HIGH SPEED PRECISION LATHE

orCall (905) 669-7507

Specifications

ManufacturerECOCA
ModelDATR 1.5
Stock Number4088
SWING OVER BED18"
SWING OVER CROSS SLIDE10-1/4"
SWING IN GAP26-3/8"
WIDTH OF BED11-3/4"
SPINDLE NOSE - CAMLOCKD1-6
SPINDLE BORE2-9/32"
RANGE OF SPINDLE SPEEDS (12)20 - 2000 RPM
LONGITUDINAL FEED RANGE0.002" - 0.032"
CROSS FEED RANGE0.001 - 0.0094"
METRIC THREADS RANGE7 - 0.5 P
INCH THREADS RANGE56 - 4 T.P.I.
TRAVEL OF TAILSTOCK BARREL5"
TAPER OF TAILSTOCK SLEEVE4 MT
POWER OF MAIN MOTOR7-1/2 HP
NET WEIGHT 40" CENTRES3,500 LBS.

Equipped With

STANDARD ACCESSORIES:


1 pc. Meehanite Cast Base

10” 3-Jaw Chuck

Steady Rest

Follow Rest

Threading Dial

Foot Brake

Coolant System

Full Length Splash Guard

4-Way Toolpost

Instruction Manual & Tools

Electrics 575/3/60



OPTIONAL EQUIPMENT:


KAR 40 Position Quick Change Toolpost Set c/w 4 Holders (B-Type) -----------------    $   1,595.00

Independent 4 Jaw chuck----------------------------------------------------------------------------- $     895.00

Chuck guard with safety switch---------------------------------------------------------------------- $     495.00

FAGOR 2-Axis Digital Readout ------- (40” Centres) ------------------------------------------- $  2,650.00


WARRANTY:

PARTS - All non-wearing mechanical & electrical PARTS carry a ONE YEAR guarantee against defects in material and workmanship.

LABOUR - One Year “ON SITE” labour is provided for machine delivered within 50 kms of our office. Travel time and mileage beyond 50 kms are not included in our Warranty and is the Buyers’ responsibility.
