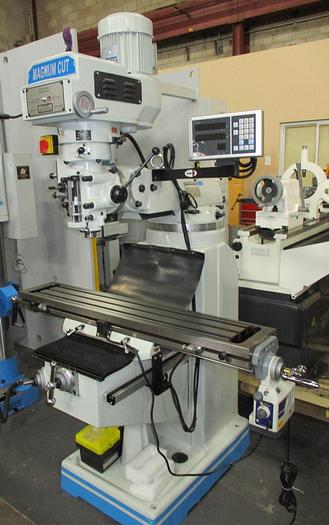

9" X 49" "NEW" MAGNUM-CUT 2VS VERTICAL MILLING MACHINE

orCall (905) 669-7507

Specifications

ManufacturerMAGNUM-CUT
Model2-VS
Serial Number18091563
Stock Number4061
STOCK #4061
TABLE WIDTH9"
TABLE LENGTH49"
TABLE TRAVEL - LONGITUDINAL32.9"
TABLE TRAVEL - CROSS12"
VERTICAL QUILL TRAVEL5"
VERTICAL KNEE TRAVEL15-3/4"
SPINDLE TAPERR-8
SPINDLE SPEED60 - 4200 RPM
MOTOR3 HP
ELECTRICS575V/3/60
APPROX. WEIGHT2,250 LBS

Equipped With

Standard Equipment:


Hardened & Ground Table Surface

Hardened & Ground Cross & Vertical Ways

Meehanite Castings

One Shot Lubrication System

Instruction Manual & Spare Parts List, Tool Box.

Electrics 575/3/60 with Reversing Switch & Magnetic Starter (CSA)


Optional Equipment:


FAGOR 2-Axis Digital Readout System (Installed)  $ 2,410.00

ALIGN Powerfeed for Longitudinal Travel (decreases travel 2”) $  790.00

ALIGN Powerfeed for Cross Travel $  890.00

ALIGN Knee Lift Servo for Vertical $  890.00

ALIGN Air Operated Power Drawbar $  1,050.00

Machine Vise 6” with Swivel Base, Angle-Loc Type $  375.00

R-8 Collet Chuck and 15 pc. collet Set $ 295.00

Clamping Kit 58 pc. $  150.00

Coolant System & Chip Tray $  950.00
