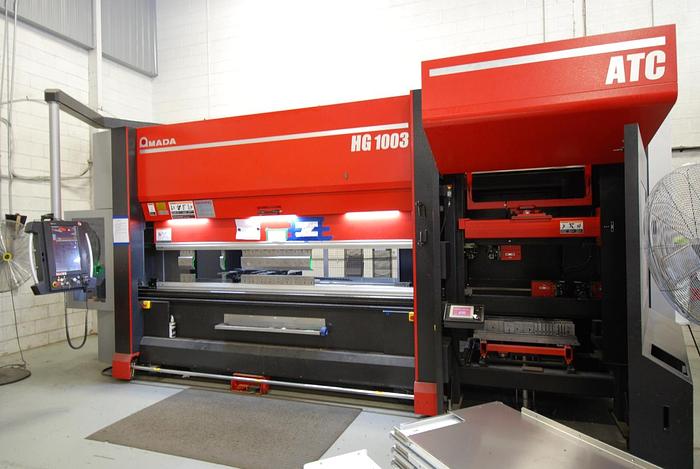

110 TONS X 118", AMADA, 2016, HG1003ATC, HYBRID CNC PRESS BRAKE
No longer available
Specifications
| Manufacturer | AMADA |
| Model | HG1003ATC |
| Year | 2016 |
| Stock Number | 4054 |
| INSTALLATION DATE | JUNE 2017 |
| TONNAGE | 110 TON |
| MAX. BENDING LENGTH | 118.1" |
| MAX. STROKE LENGTH | 9.8" |
| OPEN HEIGHT | 23.4" |
| DISTANCE BEWTEEN HOUSINGS | 106.3" |
| RAM REPEATABILITY | +/- 0.00004" |
| APPROACH SPEED | 8.7"/SEC. |
| BENDING SPEED | 0.78"/SEC. |
| RETURN SPEED | 9.8"/SEC. |
| APPROX. TOTAL WEIGHT | 26,840 LBS. |
| POWER SUPPLY | 200V, 22 KVA |
| ATC LOCATION | RIGHT HAND |
Equipped With
AMADA 8-AXIS BACKGAUGE CNC CONTROL, INCLUDES L-SHIFT BEND ANGLE CONTROL: AUTO Bi-S ( SINGLE ) AUTOMATIC TOOL CHANGER, ATC SPECS 1003 TOOL STYLE AMTS ATC PUNCH STOCKERS 15 DIE STOCKERS 18 FOOT PEDAL - (2) AUTO SLIDE & REMOTE SAFETY DEVICE, SAFETY GATE ( TOOL CHANGE ), LIGHT GUARD ( SLIDE PEDAL ), PILZ PSENvip P ( OPERATION )
THIS MACHINE IS IN EXCELLENT CONDITION AND IS UNDER THE AMADA MAINTENANCE PROGRAM.
THIS MACHINE COMES WITH ASSORTED TOOLING PLUS A $30 000 US TOOLING CREDIT.
