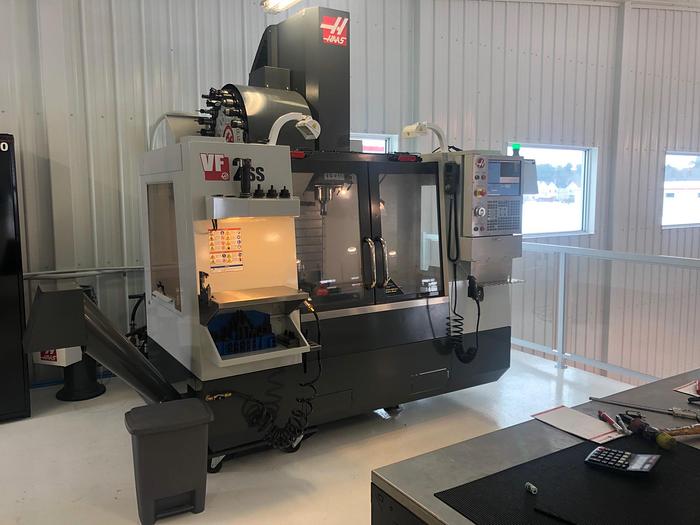

30"X, 16"Y, 20"Z, HAAS, 2014, VF-2SS, CNC VERTICAL MACHINING CENTER, W/ 4TH AXIS ROTARY TABLE
No longer available
Specifications
| Manufacturer | HAAS |
| Model | VF-2SS |
| Year | 2014 |
| Stock Number | 4034 |
| TABLE AREA | 36" X 14" |
| X-AXIS TRAVEL | 30" |
| Y-AXIS TRAVEL | 16" |
| Z-AXIS TRAVEL | 20" |
| MAX. TABLE LOAD | 1,500 LBS. |
| SPINDLE NOSE TO TABLE | 4" - 24" |
| SPINDLE TAPER | CAT 40 |
| MAX. SPINDLE SPEED | 12,000 RPM ( DIRECT DRIVE ) |
| RAPID FEED RATE - X /Y /Z | 1,400 IPM |
| MAX. TOOL WEIGHT | 12 LBS. |
| APPROX WEIGHT OF MACHINE | 8,000 LBS. |
| OVERALL APPROX. DIMENSIONS | 110"L X 93"D X 105"H |
| FEED RATE | 833 IPM |
| VOLTAGE | 220V/3/60 |
| MAIN MOTOR | 30 HP |
Equipped With
24+ 1 side- mount toolchanger, 750 MB memory, USB port, 15” LCD color monitor, memory lock keyswitch, rigid- tapping, thru spindle coolant, wireless intuitive probing system, chip auger, high intensity lighting, programmable coolant nozzle, high speed machining, intuitive programming system, remote jog handle with color LCD, visual quick- code, auxiliary coolant filter system, HRT- 210 4th axis rotary table.
