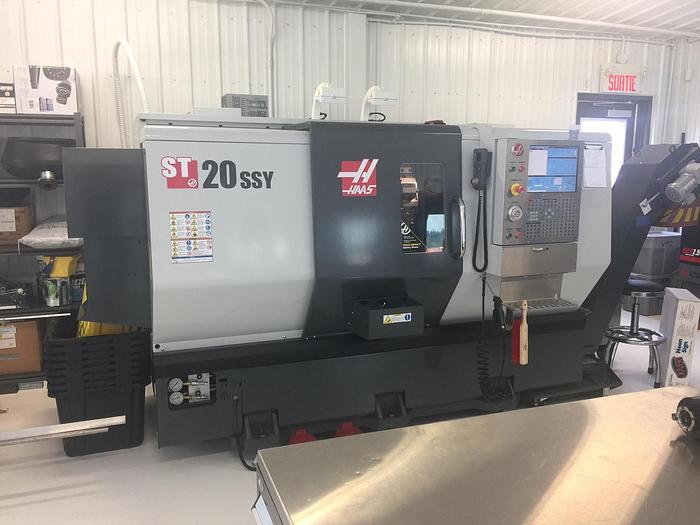

HAAS, ST-20SSY, 2014, CNC TURNING CENTER

orCall (905) 669-7507

Specifications

ManufacturerHAAS, ST-20SSY, 2014, CNC LATHE
ModelST-20SSY
Year2014
Stock Number4033
MAXIMUM SWING31-3/4"
MAX. TURNING DIAMETER10"
MAX. DISTANCE BETWEEN CENTERS21"
SPINDLE SPEEDS5000 RPM
SPINDLE BORE3.5"
BED SLANT ANGLE45
STANDARD BAR CAPACITY2"
MAIN SPINDLE MOTOR30 HP
CONTROLHAAS 32 BIT
CHUCK SIZE8"
ELECTRICS220V/3/60
OVERALL APPROX. DIMENSIONS165"L X 115"D X 77"H
APPROX. WEIGHT16,000 LBS.

Equipped With

24- station hybrid BOT/ VDI turret, high- torque live tooling with C- axis, Y- axis, 15” color LCD monitor, memory lock key- switch, spindle orientation, USB port, rigid tapping, auto. tool- presetter, belt- type chip conveyor, high intensity lighting, parts catcher, programmable hydraulic tailstock, intuitive programming system, remote jog handle with color LCD, misc. new live toolholders. Excellent (65 hours!)
