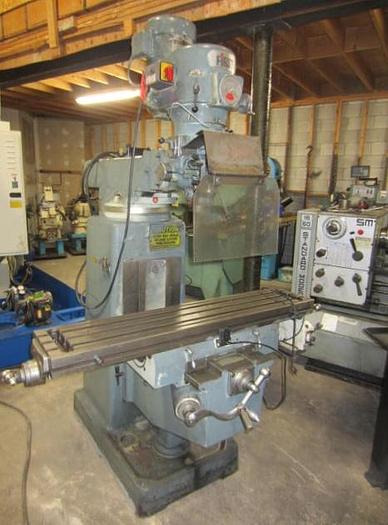

10" X 50", FIRST, VERTICAL MILLING MACHINE
No longer available
Specifications
| Manufacturer | FIRST |
| Model | LC185VS |
| Year | 2000 |
| Stock Number | 4019 |
| YEAR | 2000 |
| STOCK # | 4019 |
| TABLE WIDTH | 10" |
| TABLE LENGTH | 50" |
| TABLE TRAVEL - LONGITUDINAL | 31" |
| TABLE TRAVEL - CROSS | 16" |
| VERTICAL QUILL TRAVEL | 5" |
| VERTICAL KNEE TRAVEL | 15" |
| SPINDLE TAPER | R-8 |
| SPINDLE SPEED | 4250 RPM |
| MOTOR | 3 HP |
| ELECTRICS | 575V/3/60 |
| APPROX. DIMENSIONS | 83" X 66" X 87" |
| APPROX. WEIGHT | 2,750 LBS |
Equipped With
-2 Axes Heidenhain digital readout
-Longitudinal power feed
-Variable speed head
