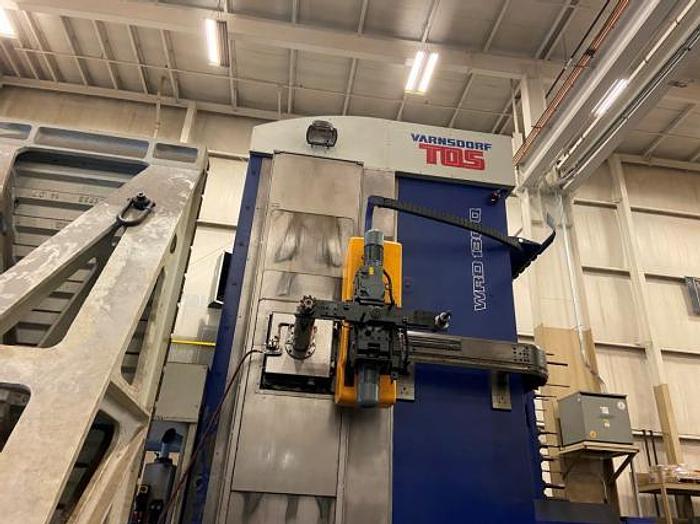

196"X, 118"Y, 39"Z, TOS, WRD-130Q, 2015, CNC FLOOR TYPE HORIZONTAL BORING MILL
No longer available
Specifications
| Manufacturer | TOS |
| Model | WRD-130Q |
| Year | 2015 |
| Stock Number | 3991 |
| SPINDLE SIZE | 5.12" |
| X - HORIZONTAL TRAVEL OF COLUMN | 196.85" |
| Y - VERTICAL TRAVEL OF HEAD | 118.11" |
| Z - SPINDLE TRAVEL | 39.37" |
| RAPID TRAVERSE RATE - X/Y/Z | 787 / 472 IPM |
| CUTTING FEEDRATES - X/Y/Z | 315 IPM |
| SPINDLE SPEED ( 2 SPEED GEARBOX ) | 10 - 3000 RPM |
| SPINDLE TAPER | CAT 50 |
| SPINDLE MOTOR | 62 HP |
| MAX. TORQUE | 1707 FT/PDS |
| TOOL CHANGE CAPACITY | 60 |
| FLOOR PLATES | 158" X 99" X 12" |
Equipped With
HEIDENHAIN iTNC530 CNC CONTROL 60 ATC COOLANT THRU SPINDLE PROBE AUTO COUNT INCLUDED OPTIONS: * Y-AXIS EXTENDED TRAVEL ( $ 36,625.00 OPTION ) * 60 POSITION AUTOMATIC TOOL CHANGER ( $ 86,630.00 OPTION ) * 580 PSI COOLANT THRU SPINDLE ( $ 32,000.00 OPTION ) * AIR THRU SPINDLE ( $ 32,000.00 OPTION ) * RENISHAW PROBE WITH INFRARED TRANSMISSION ( $ 9,000.00 OPTION ) * MACHINE ADJUSTMENT FOR AUTOMATIC COUNTING OF THE MILLING HEAD ( $ 20,340.00 OPTION ) * CHIP CONVEYOR ( $ 16,898.00 OPTION )
