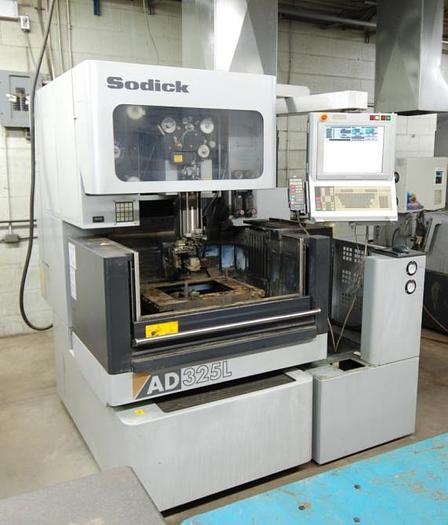

SODICK , 2008, AD325L, CNC WIRE EDM

orCall (905) 669-7507

Specifications

ManufacturerSODICK
ModelAD325L
Year2008
Stock Number3973
WORK TANK31.89" X 25.59"
WORK TABLE31.4" X 16.77"
MAX. WORKPIECE DIMENSIONS30.7" X 22.4" X 8.46" / 7.87"
MAX. WORKPIECE WEIGHT1,100 LBS.
MACHINING STROKE - X, Y, Z12.59", 9.84", 8.66"
MACHINING STROKE - U, V3.14", 3.14"
TAPER CAPACITY15 DEGREES AT 4.72"
WIRE DIAMETER0.006" - 0.013"
DISTANCE FROM TABLE TOP TO FLOOR35.43"
DIELECTRIC TANK CAPACITY1030 LITRES
APPROX. WEIGHT5,000 LBS.

Equipped With

SODICK LN1W CNC CONTROL AUTOMATIC WIRE THREADING HANDHELD REMOTE
