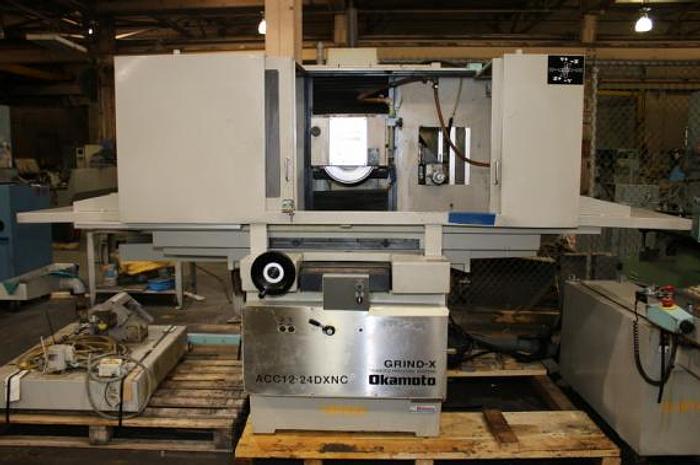

12" X 24", ,OKAMOTO, ACC-12-24 DXNCP, 2007, CNC HYDRAULIC SURFACE GRINDER
Specifications
Manufacturer | OKAMOTO |
Model | ACC-12-24 DXNCP |
Year | 2007 |
Stock Number | 3088 |
AGE | 2007 |
NOMINAL GRINDING CAPACITY | 12" X 24" |
MAXIMUM HEIGHT UNDER 12" WHEEL | 13.6" |
TABLE SPEED, INFINIITELY VARIABLE | 3' TO 82' FPM |
MAX LONGITUDINAL TABLE MOVEMENT-MAN | 26" |
FEED PER HANDWHEEL REVOLUTION | 1.85" |
MAX SADDLE TRAVEL | 9" |
INTERMITTENT TRAVERSE SPEED | 0.002" TO 0.40" IPM |
GRINDING FEED | 0,001" TO 40" IPM |
RAPID FEED | 40" IPM |
JOG FEED | 0 TO 40" IPM |
MANUAL PULSE GENERATOR | 0.00001",.001" ,.001" |
INTERMITTENT DOWN FEED | 0.0001" TO 0.004" |
SPINDLE MOTOR | 5 HP |
WHEEL SIZE | 12" DIA X 1.5" W X 5" B |
SPEED | 1000 TO 3600 RPM |
APPROX DIMENSIONS FOR OPERATION | 107" X 87" X95" H |
APPROX WEIGHT | 6000 LBS |
Equipped With
FANUC 21MB CNC CONTROL ASAHI RDU-WL DIAMOND ROTARY DRESSER OIL TEMPERATURE REGULATOR UNIT COOLANT SYSTEM WITH MAGNETIC SEPERATOR MACHIN TOOL ENCLOSURE MACHINE FEATURES: CNC Unit (FANUC 21i-MB) Controlled Axis 2 Axis (2 SIM.) MIN. Increment Y - axis (Vertical) 0.00001 Z - axis (Saddle) 0.00001 MAX. Programmable Digits ±8 digits Grind Feed Rate Override 0 - 150% Rapid Feed Rate Override 0, 25, 50, 100 % Manual Pulse Feed Increments 0.00001, 0.0001, 0.001 Preparatory Functions M - Codes (2-digits) Automatic Acceleration/Deceleration Manual Continuous Feed Interpolation (Linear / Circular) Dwell Time Machine Lock Skip Function Stored Pitch Error Compensation Dry Run Single Block Self-Diagnosis Function Coordinate System Setting Pocket Calculator Type Decimal Point Programming Custom Macro B (Option) Inch / Metric Conversion Cutter Compensation C Input / Output Interface RS232C Part Program Storage Length (Total 262.5 FT) No. of Registered Programs: 63 Programs External Message Machine Features Built-In Okamoto Conversational Programming System .... developed by Okamoto and based on our long experience with many different types of grinding applications. This software is based on the three basic types of grinding ... Form (Plunge), Surface, and Multiple-Step. The Conversational Programming promotes fast, easy set-up. Saves time...boosts productivity. When you need more flexibility in grinding, an RS232 Port and PC Card slot is available for G & M code programming transfer. Teach Input Programming System ... Operator simply moves the grinding wheel manually to the grinding start position and using an input key teaches that position to the machine, then he moves the wheel to the cross reversal position and using the input key, teaches that position to the machine, etc. He then inputs stock removal, air cut, dressing interval, etc. and the control automatically calculates total movement and all start and stop points. Drawing Input Programming System ... Input the actual dimensions from the workpiece drawing and the control automatically calculates the cycle sequence. Built-In Conversational Dress Programming ... is based on the three basic types of dressing menus -- Side, R, V, and SLOTFREE style may also be used utilizing G and M Code programming. All of the three basic types of dressing menus have the capability to dress the following forms. Vertical & Cross Incremental Feed ... with Multipliers of 0.00001/0.0001/0.001. Automatic Lubrication...All DXNCP Models utilize a proven Gravity Feed Automatic Lubrication System. Lubrication oil is pumped to an oil reservoir located at the top of the column and is gravity fed to all guideway surfaces and positioning screws. Extended Saddle and Table Ways ... Reduced overhand of the saddle and table at maximum limits provide long effective life of the machine tool and ensure its built-in accuracy. Double-Walled Column Construction ... H-Shaped guideways with 3 tapered gibs provide the strength Double Vee Way Table & Saddle Construction ... providing true tracking, greater table load support, and longer life of the built-in accuracy.
