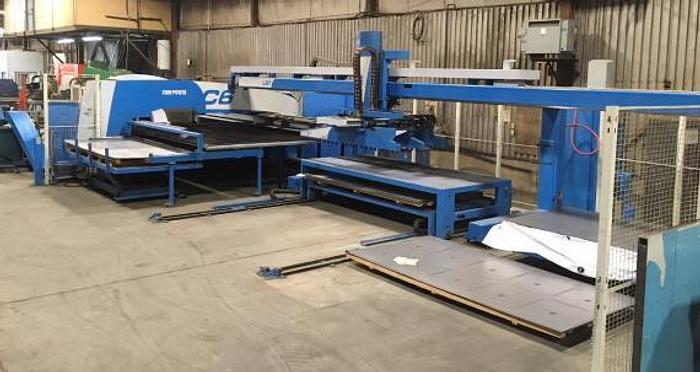

33 TON, FINN POWER C6, 2006, CNC TURRET PUNCH
Specifications
| Manufacturer | FINN POWER |
| Model | C6 |
| Year | 2006 |
| Stock Number | 3659 |
| SHEET CAPACITY | 130" X 59" |
| MOVEMENT X-AXIS | 130" |
| MOVEMENT Y-AXIS | 59" |
| PUNCHING FORCE | 33 TON |
| HITS PER MINUTE - NIBBLING | 1,100 HPM |
| HITS PER MINUTE - 1" CENTERS | 430 HPM |
| MAX. POSITIONING SPEED X-AXIS | 3,543"/MIN. |
| MAX. POSITIONING SPEED Y-AXIS | 2,362"/MIN. |
| MAX. POSITIONING SPEED SIMULTANEOUS | 4,251"/MIN. |
| MAX. SHEET THICKNESS | 5/16" |
| MAX. DIAMETER PUNCH | 3-1/2" |
| APPROX. WEIGHT OF MACHINE | 28,700 LBS. |
Equipped With
** Hydraulics hour counter: 8,126 Machines pads Standard tool holders, 20 station (thick style) Indexible Upforming System One (1) auto-index holders Five (5) auto-index tool holders Three (3) multi-tool holders (one (1) MT-10 and Two (2) MT-8) Two (2) additional punch cassettes (one (1) MT-8/24 and one (1) MT-10/16) Two (2) additional die cassettes (one (1) MT-8/24 and one (1) MT-10/16 Brush table tops "PCS" programmable clamp setting Third sheet clamp and automatic clamp move Automatic tool lubrication "ATL" Sheet spray lubricator (mineral oil) Siemens 840D control with 1.5 mB memory Work chute 19.7" x 19.7" (500 x 500 mm) Auxiliary tables for maximum sheet size (standard sheets) SC/1 slug conveyor Lifting scrap conveyor SC/2 Bottom stroke dwell Cabinet cooler One (1) set alignment tools Oil cooling unit (air) 33 US tons Transformer to adapt to local voltage Up to 1100 hpm nibbling, 430 hpm 1" centers Package does not include hydraulic oil, punches and dies or their guides or rigging II. LST6 Loading and Stacking Robot LST/LONG * Loading magnets on the floor * Tables 2A (two moving wagons, loading or stacking, top of each other) * Double sheet detector (DSD) * Compact unloading table
