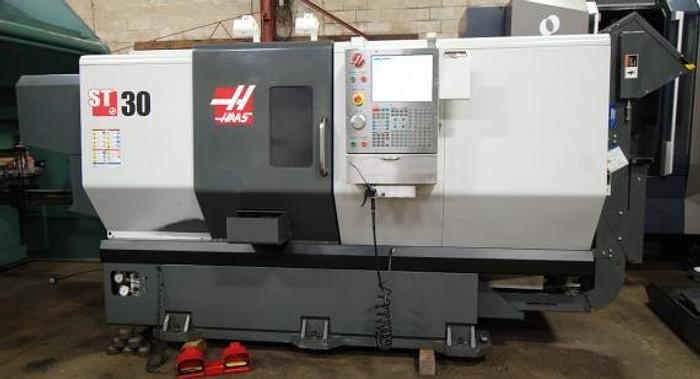

HAAS, ST-30, 2012, CNC LATHE -BIG BORE

No longer available

Specifications

ManufacturerHAAS
ModelST-30
Year2012
Stock Number3989
OVER FRONT APRON31.75"
OVER CROSS SLIDE20.75"
CHUCK SIZE12" HYDRAULIC
MAXIMUM CUTTING DIAMETER21"
MAXIMUM CUTTING LENGTH26"
BETWEEN CENTERS26"
RAPIDS X TRAVEL945 IPM
RAPIDS Z TRAVEL945 IPM
MAXIMUM THRUST X4,100 LB
MAXIMUM Z5,100 LB
SPINDLE MOTOR40 HP
SPINDLE SPEED3,400 RPM
SPINDLEA2-8
SPINDLE BORE4" ( BIG BORE OPTION )
TURRET12 STATIONS
COOLANT CAPACITY55 GAL
APPROX. WEIGHT16,000 LBS.
APPROX. OVERALL DIMENSIONS178"L X 99"D X 83"H

Equipped With

POWER ON HOURS: 4,823 CYCLE START TIME: 325 FEED CUTTING TIME: 254 HAAS 32 BIT CNC CONTROL BIG BORE OPTION 12" HYDRAULIC CHUCK 2-SPEED GEARBOX PARTS CATCHER SYSTEM USB PORT PROGRAMMABLE TAILSTOCK RIGID TAPPING BELT-TYPE CHIP CONVEYOR AUXILLARY COOLANT FILTER HIGH PRESSURE COOLANT 300 PSI AUTOMATIC TOOL PRESETTER HIGH INTENSITY LIGHTING PROGRAMMABLE HYDRAULIC TAILSTOCK THIS MACHINE IS IN EXCELLENT CONDITION
