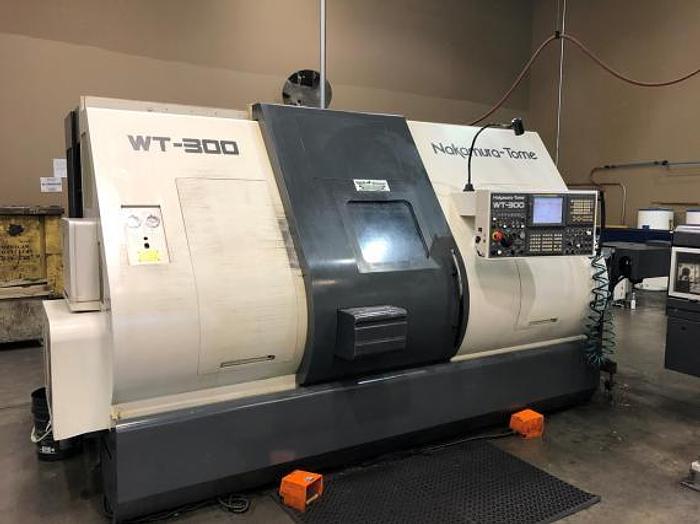

NAKAMURA TOME, WT-300MMYS, TWIN SPINDLE / TWIN TURRET TURN/MILL CENTER
No longer available
Specifications
| Manufacturer | NAKAMURA-TOME |
| Model | WT-300MMYS |
| Year | 2005 |
| Stock Number | 3981 |
| DRIVE MOTOR | 20/25 HP |
| SPEED RANGE | 45 - 4500 RPM |
| NO. OF STEPS | STEPLESS |
| SPINDLE NOSE | A2-6 |
| HOLE THRU SPINDLE | 3.15" |
| HOLE THRU DRAWTUBE | 2.6" |
| TURNING DIAMETER MAX. | 10.63" |
| TURNING DIAMETER MAX. (STANDARD) | 8.46" |
| TURNING LENGTH MAX. | 30.71" |
| B-AXIS DRIVE METHOD | 1.8 KW SERVO MOTOR |
| B-AXIS STROKE | 33.46" |
| RAPID TRAVERSE | 236 IPM |
| BALLSCREW (DIA. X PITCH) | 1.42" X 0.79" |
| DISTANCE BETWEEN SPINDLES, MIN./MAX. | 9.84" / 43.31" |
| SADDLE | LOWER TURRET |
| FEED MOTORS - X/Z/Y | 3.4 HP / 1.61 HP |
| EFFECTIVE SLIDE TRAVEL - X, Z, Y | 7.67", 30.71", 2.36" |
| RAPID TRAVERSE - X, Z, Y | 630, 1063, 236 IPM |
| CUTTING FEED RATE - X, Z, Y, B AXIS | 0.04 - 190 IPM |
| FEED MOTORS - X/Z | 3.4 / 2.4 HP |
| EFFECTIVE SLDIE TRAVEL - X, Z | 7.67", 30.71", |
| RAPID TRAVERSE - X, Z | 630, 1063 IPM |
| TURRET HEAD TYPE | CLAMP-ON STYLE |
| TURRET THICKNESS | 3.94" |
| NO. OF TOOL STATIONS | 24 |
| TOOL SIZE - SQUARE | 1" |
| - ROUND | 1.25" |
| INDEXING DRIVE | SERVO MOTOR |
| NO. OF MILLING POSITIONS | 12 |
| MILLING MOTOR | 5/7.5 HP |
| SPINDLE SPEED RANGE | 80 - 3600 RPM |
| TOOL SIZE - MILLING | 0.08" - 3/4" |
| - TAPPING | #6 TO 3/8" |
| FEED MOTOR AC | 1.6 HP |
| EFFECTIVE TRAVEL | +/- 2.36" |
| LEAST INPUT INCREMENT | 0.001 DEGREE |
| CUTTING FEEDRATE | 1 TO 4800 DEG./MIN. |
| RAPID INDEX SPEED | 600 RPM |
| POWER SUPPLY | 72 KVA |
Equipped With
FANUC 18i-TB CNC CONTROL LARGE ASSORMENT OF TOOLING, LIVE HOLDERS Y-AXIS SLIDE FOR UPPER TURRET CHIP CONVEYOR RS 232 INTERFACE AUTOMATIC LUBRICATION PROGRAMMABLE PARTS CATCHER FOR LEFT SIDE
