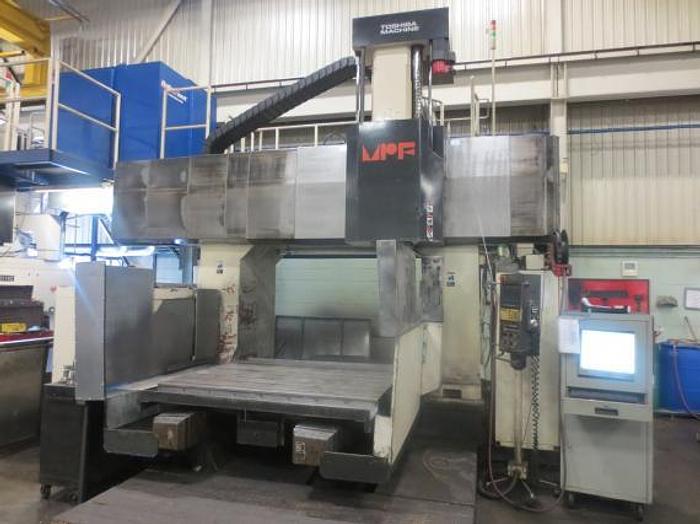

55"X, 82.7"Y, 28"Z, TOSHIBA MFP 2114C, 1997, CNC DOUBLE COLUMN MACHINING CENTER

No longer available

Specifications

ManufacturerTOSHIBA
ModelMFP 2114C
Stock Number3760
X-AXIS TRAVEL55.1"
Y-AXIS TRAVEL82.68"
Z-AXIS TRAVEL28.15"
TABLE AREA55" X 70"
MAX. WORKPIECE WEIGHT22,000 LBS.
SPINDLE TAPERCAT50
SPINDLE SPEED10,000 RPM
MAX FEED RATE, X, Y, Z394 IPM
MAX. RAPID RATE, X, Y, Z787 IPM
ATC24
MOTOR35 HP
APPROX. DIMENSIONS202"L X 175"D X 176"H
APPROX. WEIGHT46,600 LBS.

Equipped With

TOSNUC 888 CNC CONTROL COOLANT THRU SPINDLE CHIP CONVEYOR 24 TOOLCHANGER
