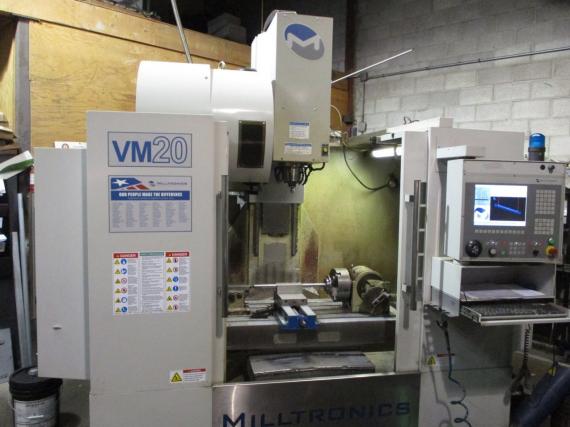

40"X, 20"Y, 26"Z, MILLTRONICS, VM20, 2008, CNC VERTICAL MACHINING CENTER

orCall (905) 669-7507

Specifications

ManufacturerMILLTRONICS
ModelVM20
Year2008
Stock Number3965
TABLE AREA34" X 20"
X-AXIS TRAVEL40"
Y-AXIS TRAVEL20"
Z-AXIS TRAVEL26"
SPINDLE SPEED8,000 RPM
SPINDLE TAPERBT 40
THROAT DISTANCE SPINDLE TO COLUMN21"
SPINDLE TO TABLE TOP4" - 30"
MAX. TABLE LOAD2,000 LBS.
APPROX. MACHINE WEIGHT10,000 LBS.
BALL SCREW DIAMETER - X,Y,Z1.25"
LINEAR WAY TYPE & SIZE35 MM BALL

Equipped With

8200 SERIES CNC CONTROL RENISHAW PROBE & STYLUS FULL SET OF TOOL HOLDERS FLOOD COOLANT CHIP AUGER 24 SIDEMOUNT ATC PENDANT CONTROL
