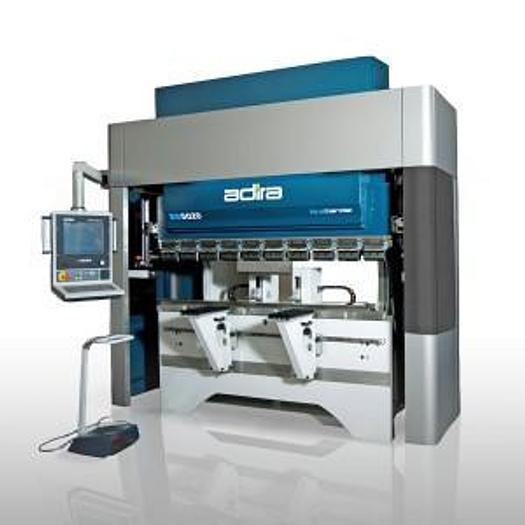

55 TON X 78.7", ADIRA 'NEW", BB5020 CNC ELECTRIC PRESS BRAKE
No longer available
Specifications
| Manufacturer | ADIRA |
| Model | BB5020 |
| Stock Number | 3390 |
| BENDING FORCE | 55 TON ( 50 METRIC TON ) |
| WORKING LENGTH | 78.7" ( 2000 MM ) |
| DISTANCE BETWEEN FRAMES | 61" ( 1550 MM ) |
| MAXIMUM STROKE | 9.84" ( 250 MM ) |
| MAXIMUM OPEN HEIGHT W/O TOOLING | 19.68" ( 500 MM ) |
| THROAT DEPTH | 15.74" ( 400 MM ) |
| MOTOR POWER | 2 X 7.5 KW ( 2 X 10 HP ) |
| APPROACH SPEED | 5.51""/S ( 140 MM/S ) |
| WORKING SPEED | 1.181"/S ( 10 MM/S ) |
| RETURN SPEED | 6.299"/S ( 160 MM/S ) |
| STROKE OF X-AXIS | 24.6" ( 625 MM ) *** |
| SPEED OF X-AXIS | 31.496"/S ( 800 MM/S ) *** |
| STROKE OF R-AXIS | 7.87" ( 200 MM ) |
| SPEED OF R-AXIS | 7.87"/S ( 200 MM/S ) *** |
| STROKE OF AXES Z - Z1/Z2 | VARIABLE |
| SPEED OF AXES Z - Z1/Z2 | 39.37"/S ( 1000 MM/S) *** |
| STANDARD DIMENSIONS, L X W X H | 129.9" X 80.7" X 115.3" |
| WEIGHT | 11,022.LBS. ( 5000 KG ) |
Equipped With
* AD 20 CNC CONTROL
* LAZERSAFE GUARDING SYSTEM
* SAFETY GUARDING
* SAFETY LIGHTS AT REAR OF MACHINE
* (2) FRONT SUPPORT ARMS ON SLIDING RAIL
* KIT TABLE III
OPTIONAL EQUIPMENT:
* AD60 - TOUCH CREEN & GRAPHICS CNC CONTROL
* VARI-SPEED SYSTEM, C/W LAZSERSAFE BLOCK SYSTEM
* CNC - Z1, Z2 FINGERS
* WILA AMERICAN HYDRAULIC CLAMPING FOR PUNCH
* WILA CLAMP READY, COMES WITH 480V WILA POWER PACK
* PRECISION QUICK CLAMPS FOR BOTH AMERICAN & EUROPEAN TOOLING
