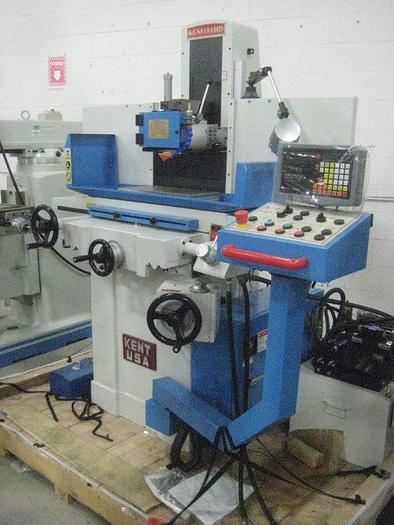

"NEW" 8" X 18" KENT, KGS-818AHD, HYDRAULIC SURFACE GRINDER WITH INCREMENTAL DOWNFEED
Specifications
Manufacturer | KENT |
Stock Number | 4371 |
Table Size | 8" x 18" |
Max. Grinding Length | 20" |
Max. Grinding Width | 8.85" |
Spindle Motor | 2 hp |
Cross Travel Per Graduation | 0.001" |
Cross Travel Per Revolution | 0.200" |
Vertical Travel Per Graduation | 0.0005" |
Vertical Travel Per Revolution | 0.100" |
Table Traverse - Longitudinal | Hydraulic |
Table Longitudinal Traverse Speed | 198 - 980" Per Min. |
Table Cross Feed | Electric |
Table Cross Traverse Increment | .020 -.400" |
Wheel Size Max. | 8" x 3/4" (1) x 1-1/4" |
Floor Space | 98" x 75" |
Approx. Weight | 3,400 Lbs. |
Equipped With
Standard Features:
Incremental Downfeed to the Wheel Head
Quality Heavy Duty Casting
Manual elevation of wheel head conveniently mounted at right side of saddle to prevent operator fatigue.
Separate Hydraulic System
Precision cartridge type maintenance free spindle with P4 class precision roller bearings.
Electrics 575/3/60 CSA
STANDARD EQUIPMENT:
Incremental Downhead of Wheelhead
8” x 18” Permanent Magnetic Chuck
Coolant System & splash guard
Manual Over the wheel parallel dresser
(1) Wheel Flange
(1) Grinding Wheel
Wheel Balancing Arbor
Wheel Balancing Stand
Service Tools & Levelling Pads
Operators Manual
OPTIONAL EQUIPMENT:
2 axis Digital Readout ( for cross and vertical position) $ 1,390.00
Spare grinding wheel flanges $ 180.00 each
