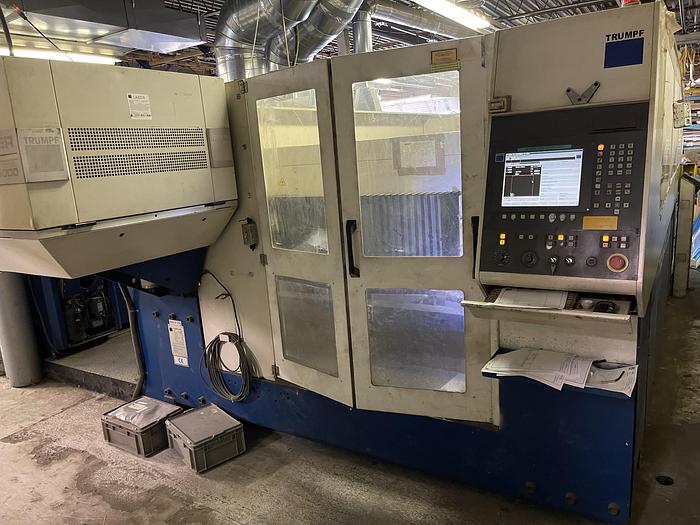

2005 TRUMPF L3030 4000 WATT CO2 LASER
No longer available
Specifications
| Manufacturer | TRUMPF |
| Model | L3030 |
| Year | 2005 |
| Stock Number | 4240 |
| Work area | 60" X 120" |
| Laser output | 4000 WATT |
| X-axis travel | 121" |
| Y-axis travel | 61" |
| Z-axis travel | 4.6" |
| Max. workpiece weight | 1,562 LBS. |
| Max. positioning speed | 60M/MIN. ( PARALLEL TO AXIS) |
| Machine weight, approx. | 25,300 LBS. |
| Max. material thickness | .80" |
| Smallest programmable increment | 0.01 MM |
| Max. positioning speed ( simultaneous ) | 3,340 IPM |
Equipped With
Equipped with: TLF4000 TURBO CHILLER UNIT
DUST COLLECTOR SIEMENS 840D CNC CONTROL PALLET SHUTTLE SYSTEM
THIS MACHINE HAD A NEW RESONATOR INSTALLED APPROX 2 1/2 YRS AGO , THE MACHINE CAN BE VIEWED UNDER POWER IN A PLANT.
