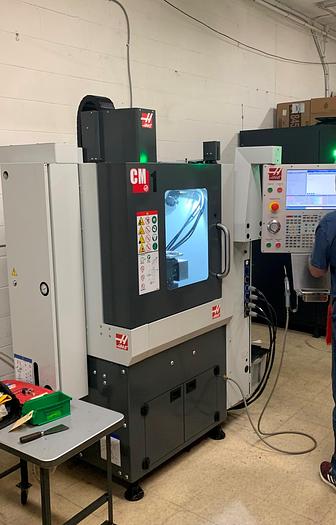

12"X, 10"Y, 14"Z, HAAS, MODEL CM-1, 2019, CNC VERTICAL TOOLROOM MILL

orCall (905) 669-7507

Specifications

ManufacturerHAAS
ModelCM-1
Year2019
Stock Number4316
X-AXIS TRAVEL12"
Y-AXIS TRAVEL10"
Z-AXIS TRAVEL14"
TABLE AREA10" X 22.5"
MAX. WEIGHT ON TABLE150 LBS.
SPINDLE NOSE TO TABLE16.8" MAX.
SPINDLE NOSE TO TABLE4.8" MIN.
MAX. SPINDLE SPEED30,000 RPM
SPINDLE TAPERISO 20
BEARING LUBRICATIONAIR/OIL INJECTION
COOLINGAIR COOLED
DRIVE SYSTEMDIRECT SPEED, BELT DRIVE
MAX. CUTTING FEEDRATE500 IPM
RAPIDS ON X, Y, Z757 IPM
TOOLCHANGER CAPACITY20
MAX. TOOL DIAMETER2.3"
MAX. TOOL WEIGHT5 LBS.
COOLANT CAPACITY13 GAL.
AIR REQUIREMENTS1 SCFM @ 100 PSI
APPROX. WEIGHT OF MACHINE2,200 LBS.
ELECTRICS220 VOLT / 3/1 PHASE / 60 HERTZ
FULL LOAD AMPS12

Equipped With

4TH & 5TH AXIS OPTIONS

TRT70 HIGH-SPEED 70MM TILTING ROTARY TABLE

WIPS - RENISHAW PROBING SYSTEM

WIFI CAMERA

32 GB EXPANDED MEMORY

DYNAMIC WORK OFFSET/TOOL CENTER POINT CONTROL

SECOND HOME POSITION

THKIT-OM TOOLHOLDER KIT

TOOLCHANGER

HIGH SPEED MACHINING


THIS MACHINE IS IN AS NEW CONDITION WITH 10 HRS RUN TIME!
