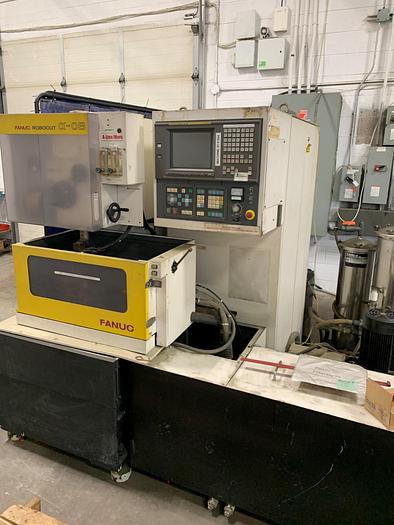

FANUC, ROBOCUT ALPHA-OB, 1994, CNC WIRE EDM
No longer available
Specifications
| Manufacturer | FANUC |
| Model | ALPHA--OB |
| Year | 1994 |
| Stock Number | 4300 |
| INSIDE TANK DIMENSIONS | 35.2" X 25.5" |
| MAX. WORKPIECE SIZE | 25.6" X 16.5" X 5.9" |
| TRAVELS (X,Y,Z) | 11.8", 7.9", 5.9" |
| TAPER ANGLE | 0 - 15 DEG. |
| MAX. WORKPIECE HEIGHT | 5.9" |
| MAX. WORKPIECE WEIGHT | 360 LBS. SUBMERGED |
| WIRE DIAMETER | 0.004" TO 0.012" |
| WIRE SPEED | 0 TO 394 IPM |
| APPROX. WEIGHT OF MACHINE | 3,500 LBS. |
Equipped With
FANUC 16-W CNC CONTROL
